- 🎯【Multifunctional LED Tester】 Accurately measure resistance (0.1Ω-60MΩ) and capacitance (1pF-99.99mF) for circuit board repairs. Perfect for DIY enthusiasts and professionals alike. Capable to test battery levels, diodes, continuity, open-circuit voltage, and even LEDs or voltage regulators.
- 🎯【One-hand Operation】Designed for single-handed use, this portable SMD meter is perfect for on-the-go electronics work. The finely crafted, gold-plated tweezer tips are thinner and more precise, making it ideal for electrical PCB board capacitor resistor component repair/testing and detailed DIY projects.
- 🎯【6000-count Display】Features a large 6000-count LCD display with auto-ranging capability for easy readings. Includes auto power-off and low battery indicator for extended battery life. Overload protection with "OL" alert to ensure safe and and "REL" zero-out feature for accurate measurements.
- 🎯【Test Leads Included】50g hand held RCD Meter AI-990C is easy to carry and one-hand operation. IEC-1010 double insulation for enhanced safety. Gold-plated test terminals reduce contact resistance and prevent rust. Compatible with probe leads for versatile testing options, ensuring accurate measurements in various scenarios.
- 🎯【Accessories & Warranty】AIMOEST smart SMD tweezers tester AI-990C comes with spare test pins, test leads and 365days quality warranty. Ideal for electronic troubleshooting, automotive diagnostics, and home appliance maintenance.
The AIOMEST AI-990C SMD Meter featured the protable size and multifunctional deisgn. Auto Ranging, Auto Power Off, Diode Test and Relative Value indication support make it a practical measuring instrument for SMD, ESR and LCR detection.
Funciton Overview:
- Diode Test: √
- Auto Range: √
- Battery Test: √
- Continuity Buzzer √
- Scan Mode Function: √
- Relative Value:>√
Product Parameter:
- Digit LCD Display: 6000 Counts
- Diode Test: Open Voltage:3.0V Testing Current:1.5mA
- Resistance Range:0.1Ω~60MΩ (Resolution: Min 0.1Ω)
- Capacitance Range:1pF~99.99mF (Resolution:Min 1pF)
- Zener/LED: Open Voltage: Min 20V Testing Current: Approx 1mA
- Battery Power: Loading Current: Approx 10mA Accuracy:±(1.5rd% 5dgt)
- Resistance Accuracy: 600kΩ/6MΩ/60MΩ: /-(1.5%rdg 10dgts) at average
- Capacitance Accuracy: 9.999nF/99.99μF/~99.99mF: /-(2.5% of rdg 10 digits) at average

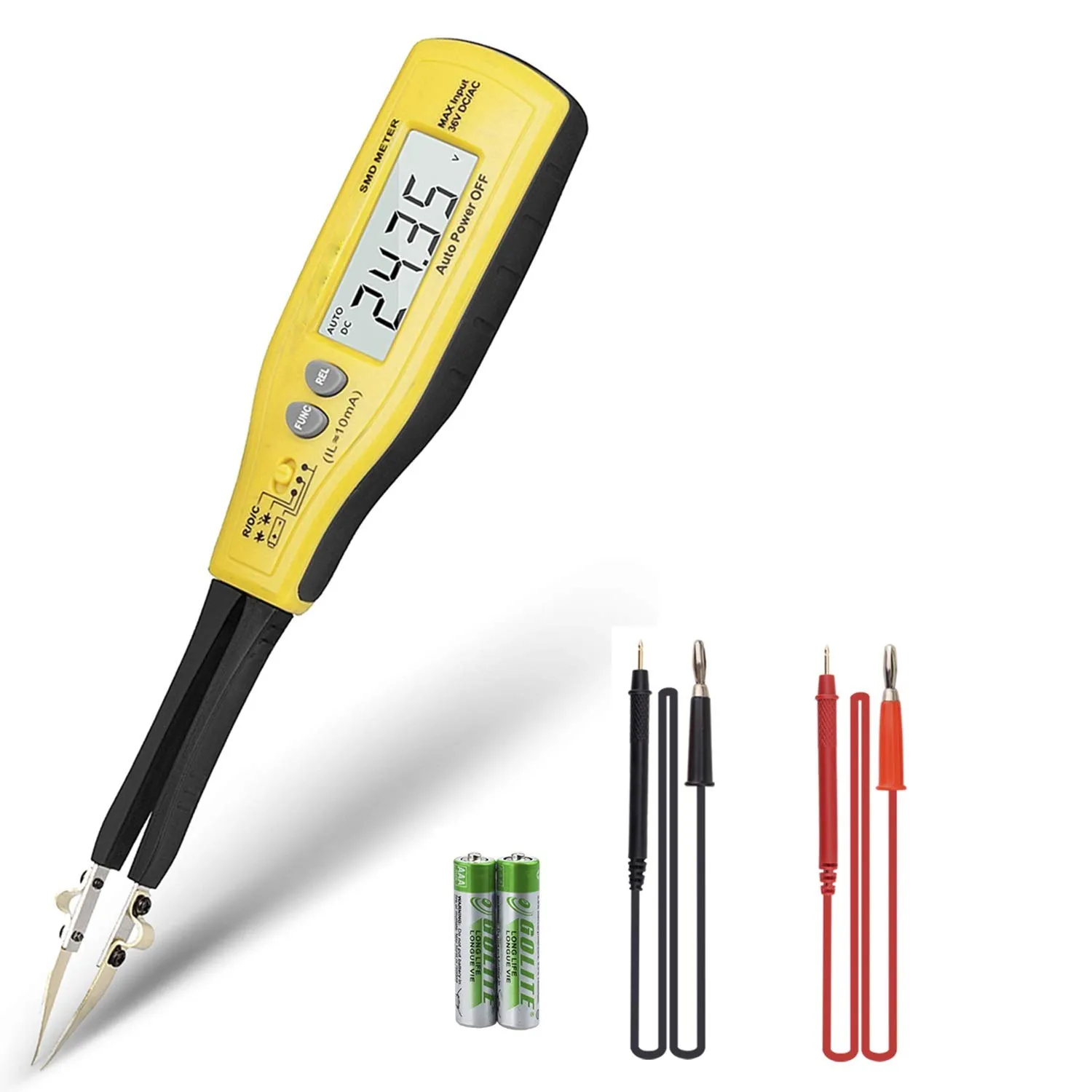

What’s in the box？
- 1* Test Lead
- 2* 1.5V(AAA)Battery
- 1* AIOMEST AI-990C SMD Meter
- Package Dimensions : 8.23 x 2.52 x 1.42 inches; 1.76 ounces
- Batteries : 1 AAA batteries required.
- Date First Available : May 8, 2020
- Manufacturer : AIOMEST
