Product Description

Digital Soldering Station, Watts 40/80, Temp. (F) 150 Degrees to 850 Degrees , Design WX Series, Features Dual Port Allows (2) 120W Soldering Pencils to Operate Simultaneously, Capacitive Glass Touch Screen, Turn and Click Dial, Multi Language, Large LCD Display, Versatile Connectivity Options, USB Port for Parameter Configuration and Data, Includes Power Unit, (2) Stands, WXMP Pencil and WXMT Tweezers, RT3 and RTW3 Tips, Tip RT Series, For Use With WXMP Pencil and WXMT Tweezers

Amazon.com

Includes WX2 station, which can simultaneously operate two 120-watt tools (view larger).

Weller's WX system keeps your cost of ownership low with intelligent power management to conserve energy and an exceptional degree of tool compatibility. The Weller WX2021 solder station kit comes with the WX2 station, WXMP-MS soldering iron, WDH51 tool stand, WXMT-MS de-soldering tweezer, and WDH60 tool stand.

The WX2 acts as a central control unit (benchtop controller) for the new, intelligent soldering irons, solder fume extractors and preheating plates. The station supports simultaneous operation of two 120-watt tools, and it features a blue LED backlit LCD screen that's viewable from all angles as well as multiple language display. The intuitive interface features six touch keys with radius finger guide for turn-and-click navigation. A multi-purpose USB port can be used in conjunction with software for monitoring, parameterising, and data logging (included with the software package).

The fine, thin WXMP soldering pencil is suited for work under a microscope, while the WXMT tweezers are ideal for soldering and desoldering small SMD parts. The WXMP uses RT series tips, WXMT uses RTW series cartridges.

All Weller WX tools have an integrated sensor system with communications, signal processing, and memory built into the handle. This allows control parameters to be stored in the tool's internal memory, not in the WX station. Removal of the tool from its safety rest will switch the tool back to its operating temperature, eliminating the need for stop-and-go stands. A blue LED light ring on the tool handle gives visual indication the tool is heating.

What's in the Box

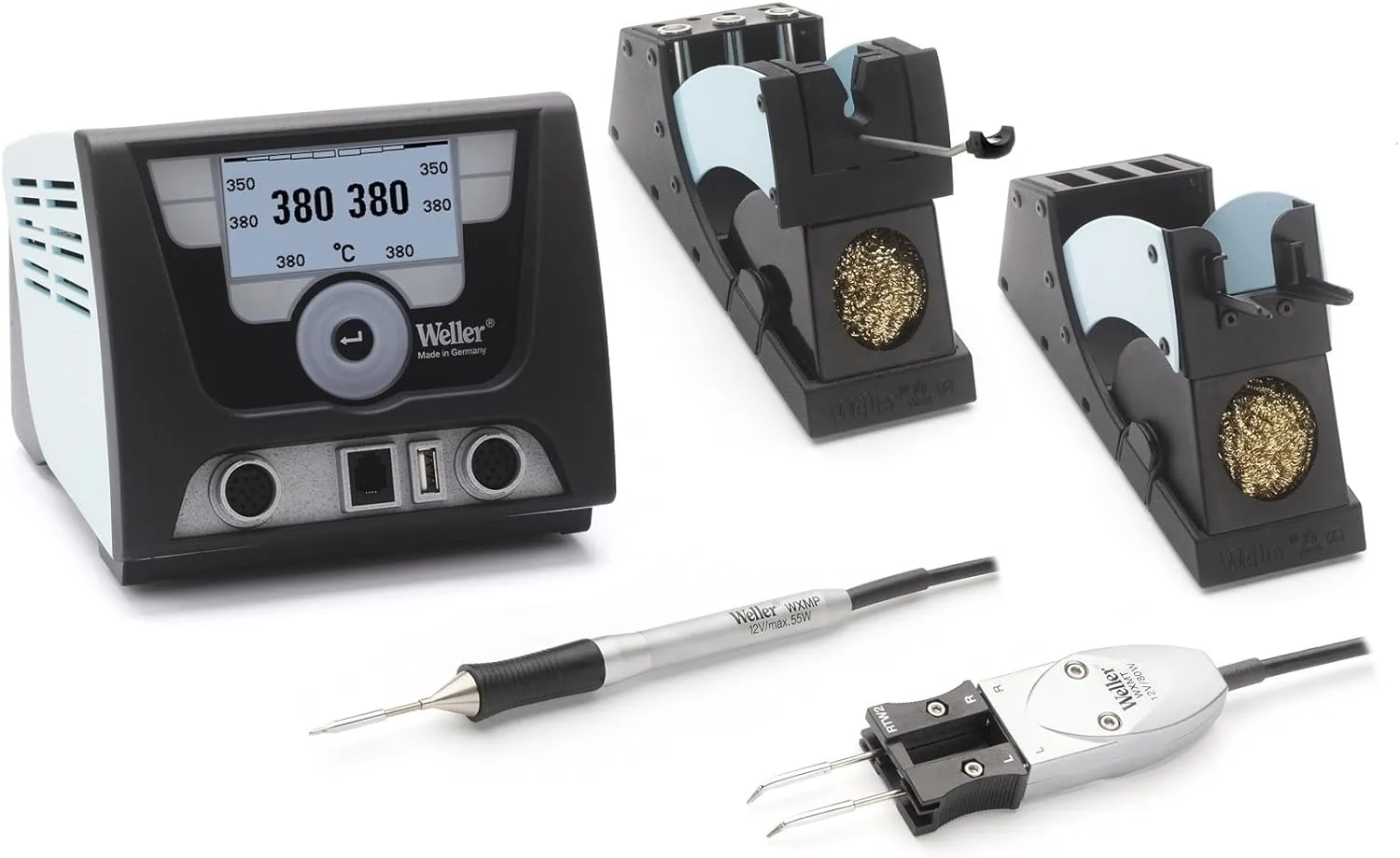

WX2 station, WXMP-MS soldering iron, WDH51 tool stand, WXMT-MS de-soldering tweezer, WDH60 tool stand, operating instructions

About Weller

Weller has been the leading brand in professional-quality soldering equipment since 1945. In addition to its famous irons and soldering guns, Weller is also recognized as a leader in advanced electronic rework and repair equipment and irons for sophisticated industrial applications as well as numerou products for DIYers and hobbyists.

WX2021 Digital Solder Station

At a Glance

• Operates two 120 watt soldering pencils simultaneously
• Large graphic LCD display can be viewed from all angles
• Capacitive glass touch screen is chemical and temperature resistant
• Turn and click wheel with enter key and finger guide is intuitive to use
• Versatile connectivity options -- preheaters and fume extraction systems
• Multi-purpose USB port for parameter configuration and data logging

From the Manufacturer

Solder Stat, WbyMP, WbyMT,WDH50 and 60, 120-Volt.
