- 【LCR Tweezer Tester】ZT-MD1 is a multi-functional portable test instrument that supports accurate measurement of resistance, capacitance, inductance and diode
- 【Measurement Range】3 test frequencies - 100 Hz, 1 kHz, 10 kHz. 2 test voltages - 0.3 Vrms, 0.6 Vrms. r: 10 mΩ to 10 MΩ / C: 1 pF to 20 mF / L: 1 µH to 60 H
- 【Compact and Convenient】LCR Meter Tweezer features a handheld, tweezer-sized design with a 1.14'' HD color display for easy operation, and it is equipped with a variety of test functions for seamless, on-the-go testing, freeing you from the constraints of traditional LCRs
- 【Automatic Recognition】Carefully designed for automatic detection and measurement of electronic component parameters, displaying primary and secondary parameters. Simplify your workflow
- 【Data Storage and Export】 The LCR tester automatically saves test records. You can also connect the tester to your PC and transfer all data to your PC via EXCEL

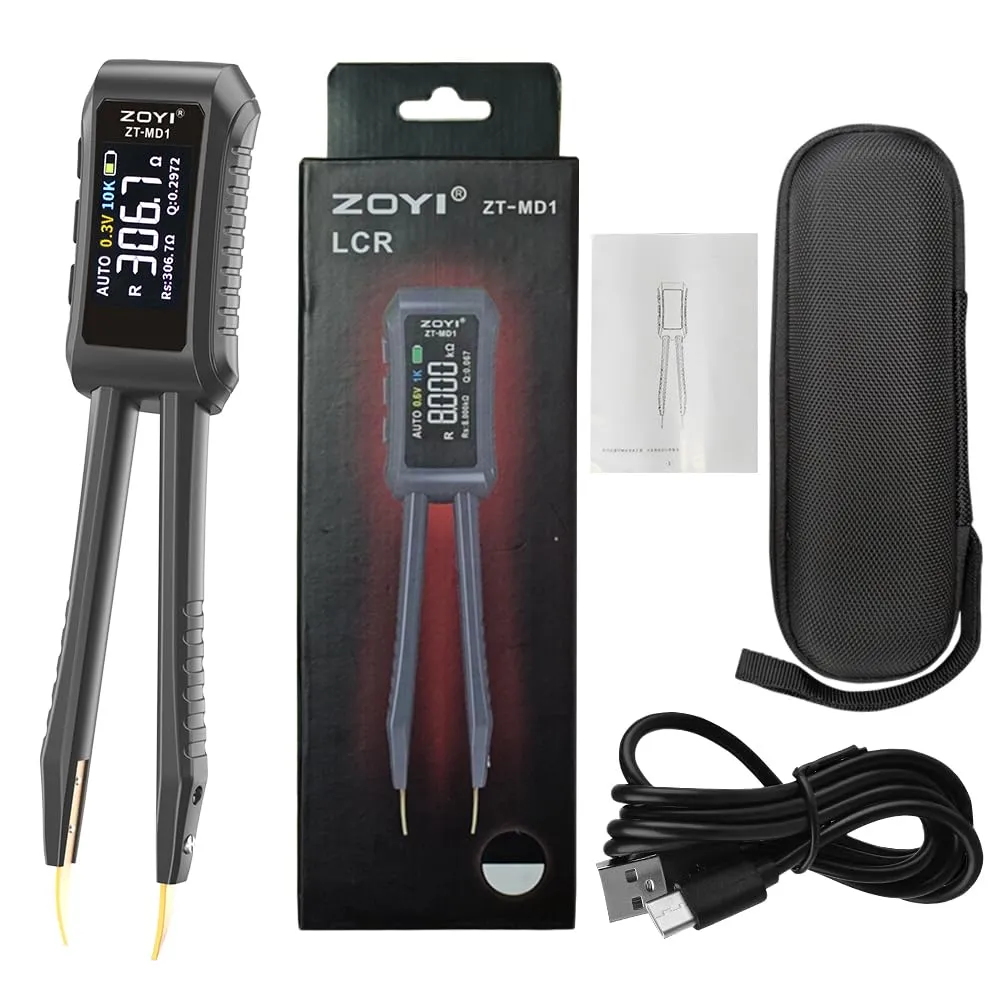

ZT-MD1 Digital Smart Tweezer LCR SMD ESR Tester for Resistance Capacitance Inductance Continuity and Diode Test Measurement
1.Product Model:zoyi MD1
2.Capacitance range: 1pF-20mF
3.Inductance range: 1μh-60H
4.Resistance range: 10mΩ-10MΩ
5.Diode: On voltage 0.7V
6.Frequency test: 100Hz, 1kHz, 10KHz
7.Level test: 0.3V, 0.6V RMS
8.Parameter display: L、C、R、D、Q、RS
9.Display: 1.14'' color screen
10.Charging Interface: Type-C, 5V/A
11.Power Supply: 400mAh lithium battery
12.Auto recognition measurement: Support
13.Replaceable tweezer head: Support
14.Auto shutdown: Support
15.Data hold: Support
16.History record: Connect to PC to view and export
17.Language: Chinese, English
18.Size: 146*30*18mm
19.Weight: 41g
20.Gear Position:Auto Range、Resistance Rang
Capacitance Range、Inductance Range、Continuity Range
- Package Dimensions : 9.06 x 2.83 x 1.85 inches; 4.16 ounces
- Batteries : 1 AAA batteries required. (included)
- Date First Available : March 6, 2025
- Manufacturer : GJMYNSI
- Country of Origin : China
